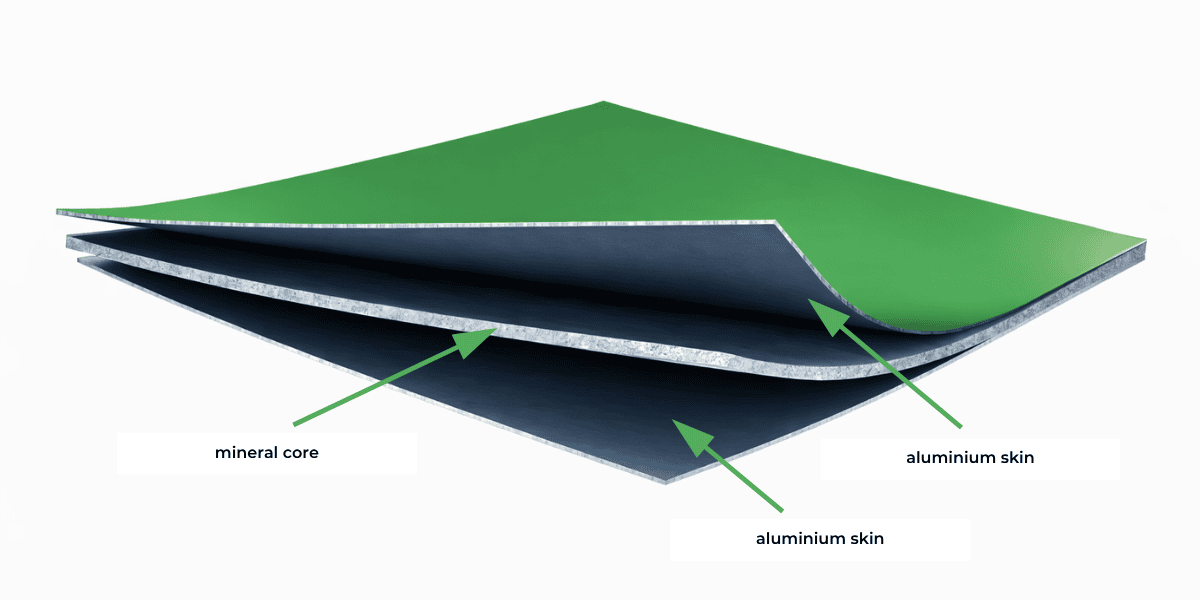

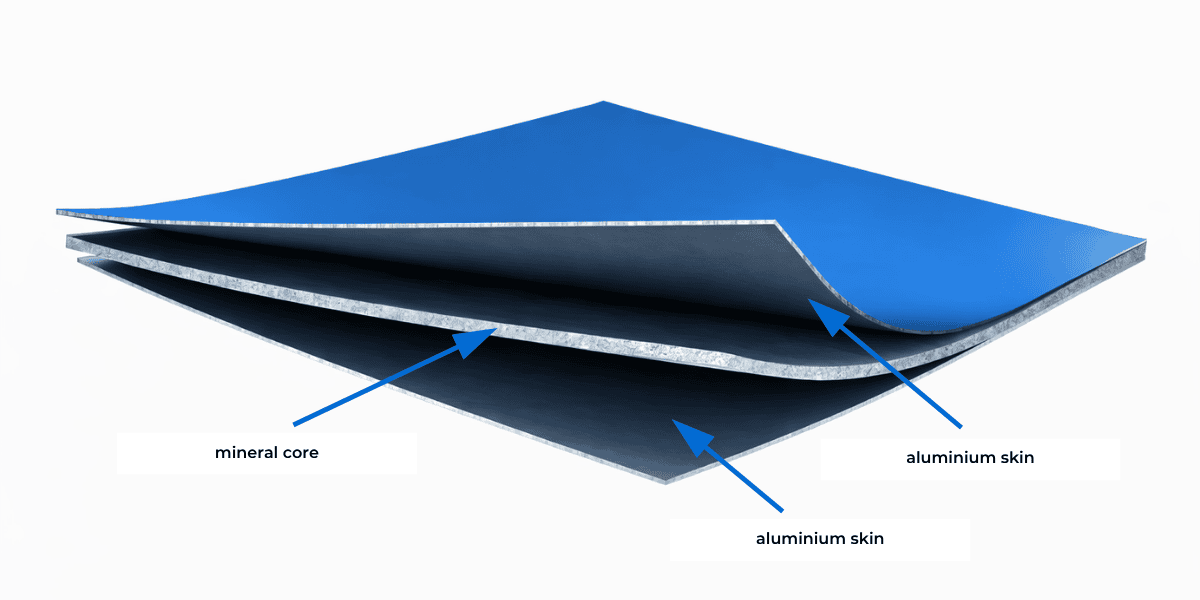

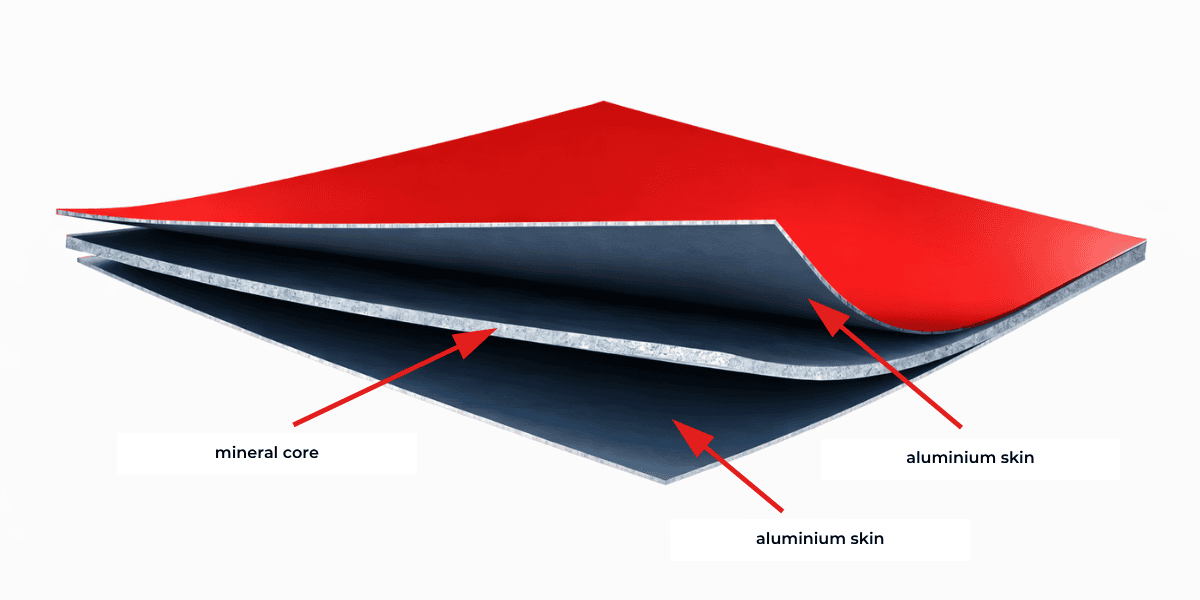

Aluminium composite panels (ACP / Bond) are layered materials made of two aluminium sheets and a central core (polyethylene or mineral). This composite structure provides high rigidity relative to weight, dimensional stability, and controlled flatness over large surfaces.
They are mainly used for ventilated facade systems and architectural cladding, with the panel type selected based on fire reaction requirements and project specifications.
Available Aluminium Composite Panels
We offer multiple types of aluminium composite panels, each designed for different requirements in terms of strength, fire performance, and budget, allowing you to choose the right solution for your project.
Saraybond
Saraybond is a high-quality aluminium composite panel, designed for ventilated facades and architectural projects that require high performance and long-term durability.
- Aluminium skin thickness: 0.5 mm
- Fire classification: B1 / B2 / A2
- Recommended for: ventilated facades, commercial buildings, and premium projects
Saraybond A2
| Layers | Thickness | Alloy |
|---|---|---|
| Top aluminium layer | 0.50 mm | 3105 H26 |
| Core | 3 mm | Mineral |
| Bottom aluminium layer | 0.50 mm | 3105 H26 |
Saraybond B1
| Layers | Thickness | Alloy |
|---|---|---|
| Top aluminium layer | 0.50 mm | 3105 H26 |
| Core | 3 mm | Mineral |
| Bottom aluminium layer | 0.50 mm | 3105 H26 |
Saraybond B2
| Layers | Thickness | Alloy |
|---|---|---|
| Top aluminium layer | 0.50 mm | 3105 H26 |
| Core | 3 mm | Polyethylene |
| Bottom aluminium layer | 0.50 mm | 3105 H26 |
Aluface
Aluface is a versatile aluminium composite panel, suitable for most cladding applications, offering a good balance between strength, aesthetics, and cost.
- Aluminium skin thickness: 0.35 mm
- Fire classification: B1 / B2 / A2
- Recommended for: facade cladding and architectural elements
Aluface B1
| Layers | Thickness | Alloy |
|---|---|---|
| Top aluminium layer | 0.35 mm | 3105 H26 |
| Core | 3.30 mm | Mineral |
| Bottom aluminium layer | 0.35 mm | 3105 H26 |
Aluface B2
| Layers | Thickness | Alloy |
|---|---|---|
| Top aluminium layer | 0.35 mm | 3105 H26 |
| Core | 3.30 mm | Polyethylene |
| Bottom aluminium layer | 0.35 mm | 3105 H26 |
Aluface A2
| Layers | Thickness | Alloy |
|---|---|---|
| Top aluminium layer | 0.35 mm | 3105 H26 |
| Core | 3.30 mm | Mineral |
| Bottom aluminium layer | 0.35 mm | 3105 H26 |
Aluboard
Aluboard is a cost-effective aluminium composite panel, commonly used for standard cladding applications and projects where an efficient, budget-friendly solution is required.
- Aluminium skin thickness: 0.25 mm
- Fire classification: B2
- Recommended for: exterior cladding, cassettes, and standard applications
Aluboard 4 mm
| Layers | Thickness | Alloy |
|---|---|---|
| Top aluminium layer | 0.25 mm | 3105 H26 |
| Core | 3.50 mm | Polyurethane core |
| Bottom aluminium layer | 0.25 mm | 3105 H26 |
Aluboard 3 mm
| Layers | Thickness | Alloy | Coating |
|---|---|---|---|
| Top aluminium layer | 0.25 mm | 3105 H26 | Polyester coating |
| Core | 2.50 mm | Polyurethane core | – |
| Bottom aluminium layer | 0.25 mm | 3105 H26 | Epoxy polyester coating |
Request a Call Back
Aluminium Composite Panels – Available Dimensions
Composite panels are available in multiple standard sizes, suitable for facade applications and architectural elements.
| Thickness | Width | Length |
|---|---|---|
| 3 mm | 1250 mm | 3200 mm up to 6000 mm |
| 4 mm | 1250 mm | 3200 mm up to 6000 mm |
| 3 mm | 1500 mm | 3200 mm up to 6000 mm |
| 4 mm | 1500 mm | 3200 mm up to 6000 mm |
Common Applications
Ventilated facades for commercial and administrative buildings
Exterior cladding for modern buildings
Lightweight metal frames and substructures
Facade renovations and upgrades
Architectural cassettes and volumes
Decorative cladding for commercial spaces
Closing and finishing elements for facade systems
Aluminium composite panels (Bond) are used in architectural projects where lightweight, durable, and aesthetic solutions for facade cladding are required. Due to the material properties and processing possibilities, they are suitable for the development of modern facade systems and architectural elements.
General Technical Characteristics
Aluminium composite panels (Bond) are layered products manufactured in accordance with applicable standards and accompanied by relevant technical documentation. The characteristics below present the general specifications of the available products, with exact values varying depending on the panel type.
| Characteristic | General Specification |
| Structure | aluminium – core – aluminium |
| Thickness | 3 mm / 4 mm |
| Aluminium skin thickness | 0.25 mm, 0.35 mm, 0.50 mm |
| Fire classification | B2 / B-s1,d0 / A2-s1,d0 |
Aluminium Composite Panels – Available Colours
Aluminium composite panels are available in a wide range of colours and decorative finishes, suitable for modern architectural projects, facade cladding, and exterior design elements. Depending on the panel type, you can choose from classic colours as well as special finishes that replicate natural materials or metallic surfaces.
Request a Call Back

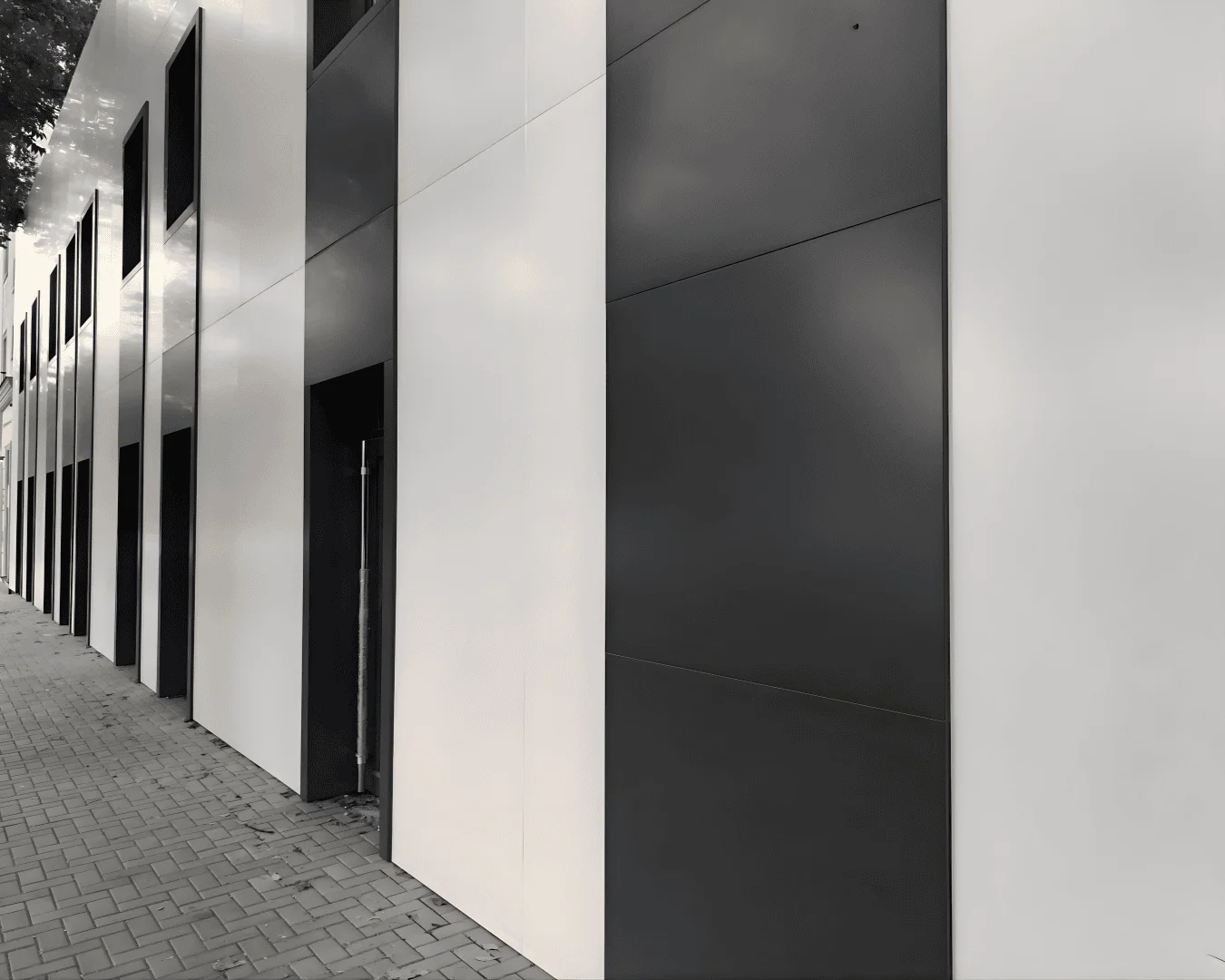

Alcotek Projects
